NEW
DG X Turntable
All Essentials
Bundled up.
DGX RAW Pack
$4,999.00USD
- DC2 Power Supply
- Ground Wire
- Technomat 7.0mm
- Standard Mains Lead
- Options: Black, White, Red Finished
DGX Sabre Lite Pack
- New Sabre Lite MM Cartridge
- DC2 Power Supply
- Ground Wire
- Technomat 7.0mm
- Standard Mains Lead
- New Black Line I/C 1.0M
- Options: Black, White, Red Finished
DGX Sabre Pack
- Sabre MM Cartridge
- DC2 Power Supply
- Ground Wire
- Technomat 7.0mm
- Standard Mains Lead
- Redline Line I/C 1.0M
- Options: Black, White, Red Finished
DGX Dark Sabre Pack
- Dark Sabre MM Cartridge
- DC2 Power Supply
- Ground Wire
- Technomat 7.0mm
- Redline Mains Cable 2.0M
- Redline RCA I/C 1.0M
- Options: Black, White, Red Finished
DGX Mystic II Pack
- New Mystic II MC Cartridge
- DC2 Power Supply
- Ground Wire
- Technomat 7.0mm
- Redline Mains Cable 2.0M
- Verum RCA I/C 1.15M
- Options: Black, White, Red Finished
features

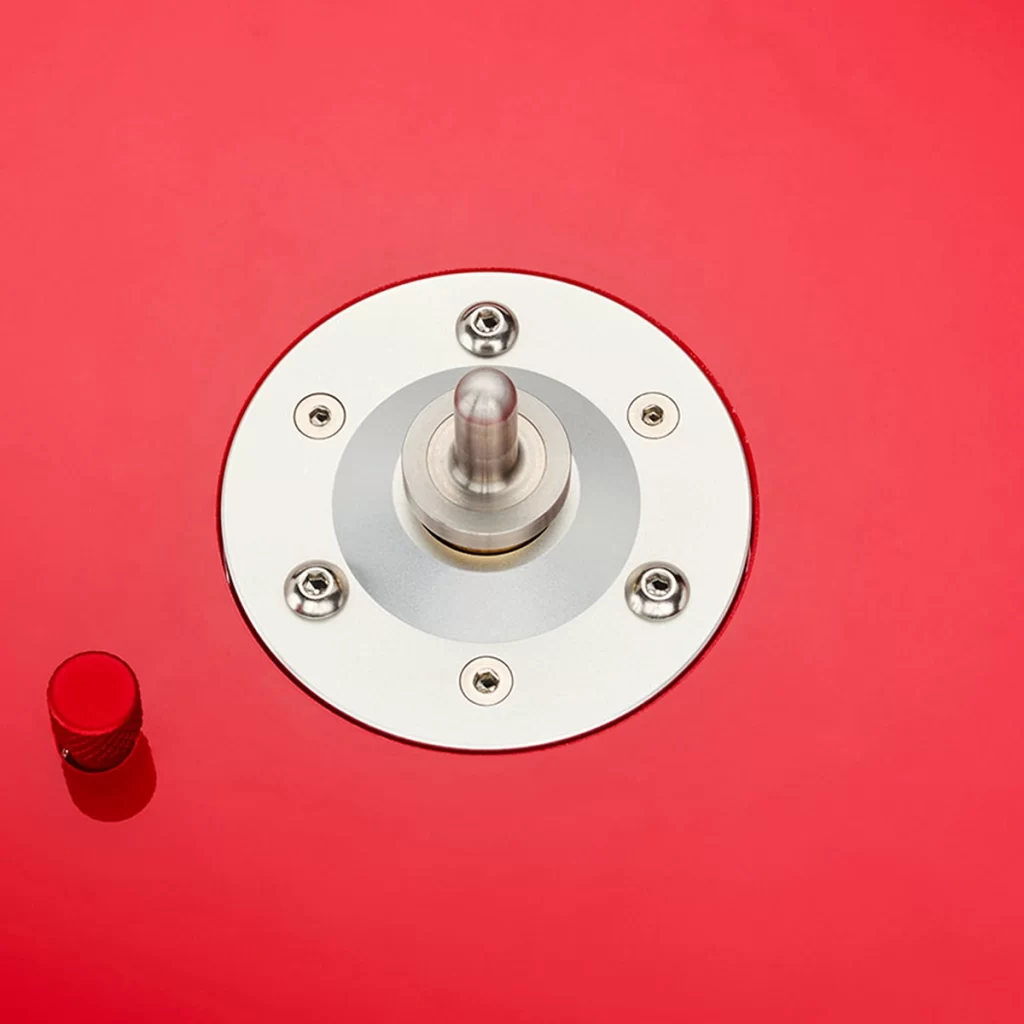

DG X Main Bearing Assembly
- Super Precision Machined Non-magnetic Stainless
- Spindle – Mirror Polished
- Super Precision Machined Brass Alloy Main Bearing Housing
- With Super Precision Tungsten Carbide Thrust Ball
- Grounding Selectable – Signal, Chassis & Floating

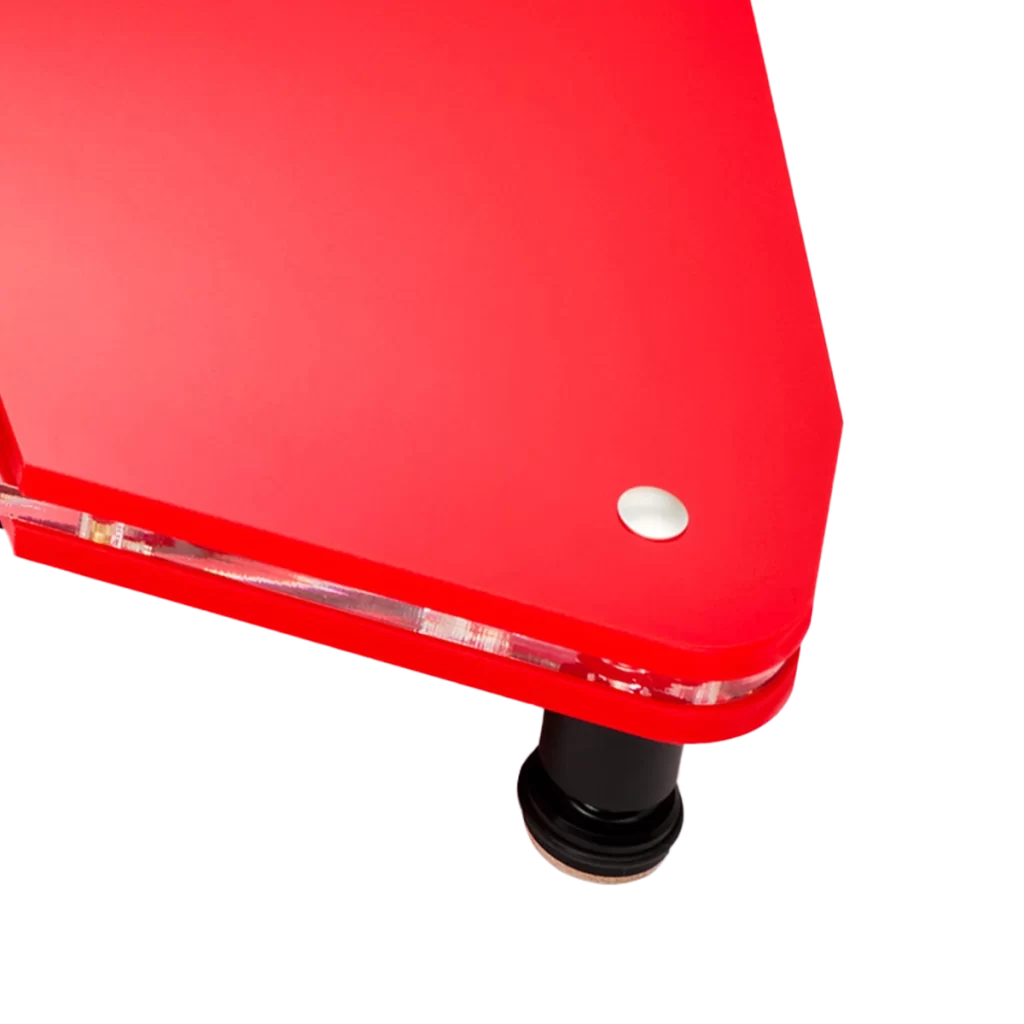

DG X Foot Assembly
- Three Adjustable Feet
- Acetal Rear Foot Pillar
- Two Aluminium Alloy Front Foot Pillars
- All Three Foot with Resistive Felt Ground Interface

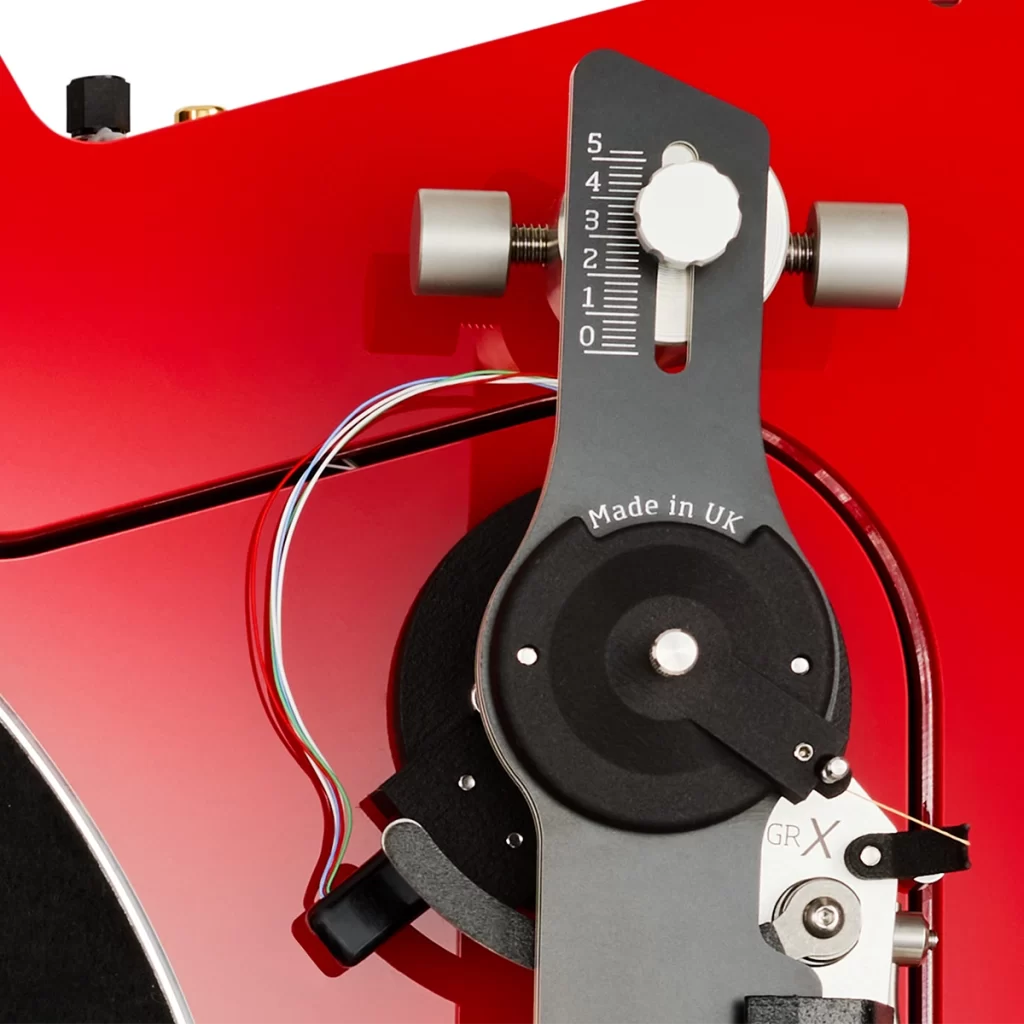

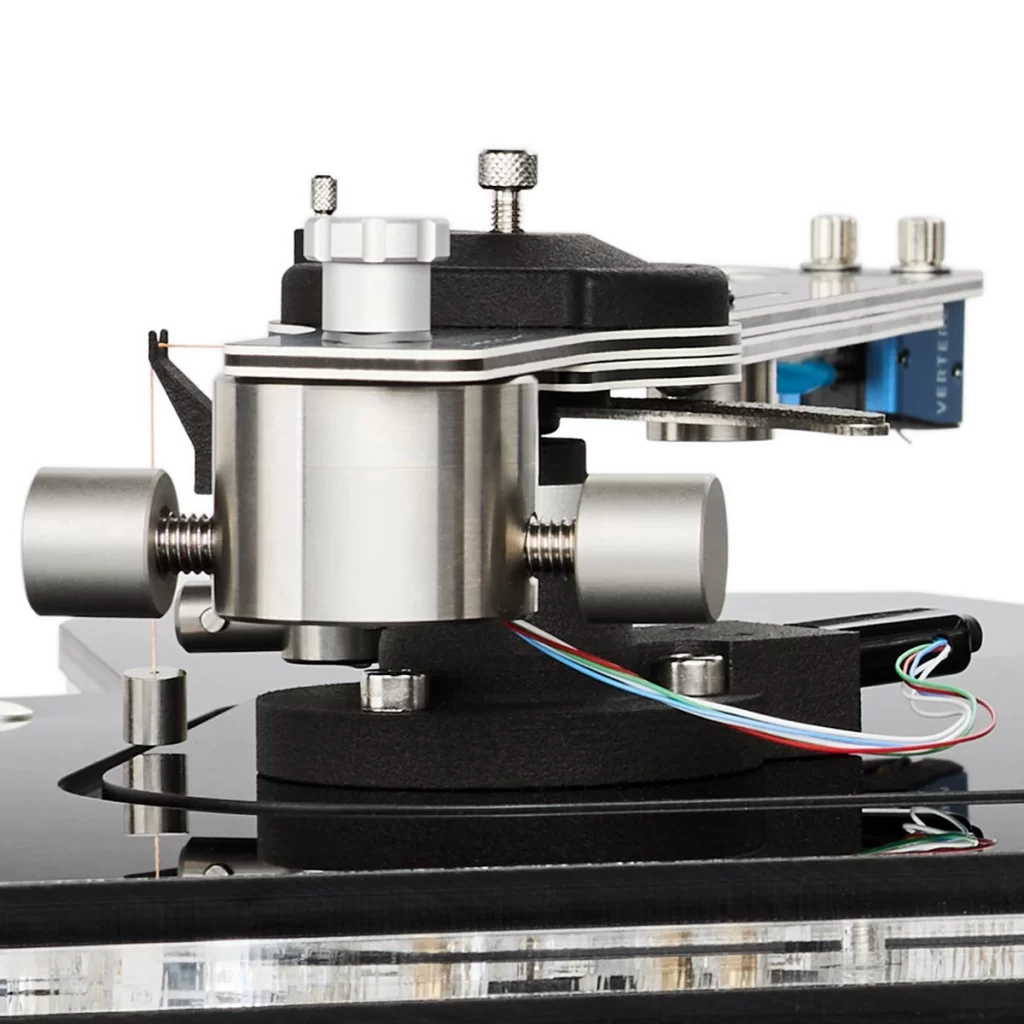

GR X Tonearm Bearing Assembly
- Special Tri Point Articulated Bearing System 3 Captive Precision Silicon Nitride Balls With VTA Adjustable Precision Machined Non- magnetic Bearing Point (SG-1 Tonearm Style)
- Adjustable Stainless Weight/Thread Progressive Across The Record
- Azimuth Compensating Stainless Weight
- Plugin & Out Easy Removable Tonearm Beam With Magnetic Arm Rest
- Bespoke Vertere Lift/Lower Mechanism Static Insulated Lift/Lower Arm
- Non-resonant TA Bearing Pillar
- Vertere Pulse Wiring & Vertere Gold Plated RCA OutPut Sockets With Selectable Shielding; Signal, Chassis & Floating

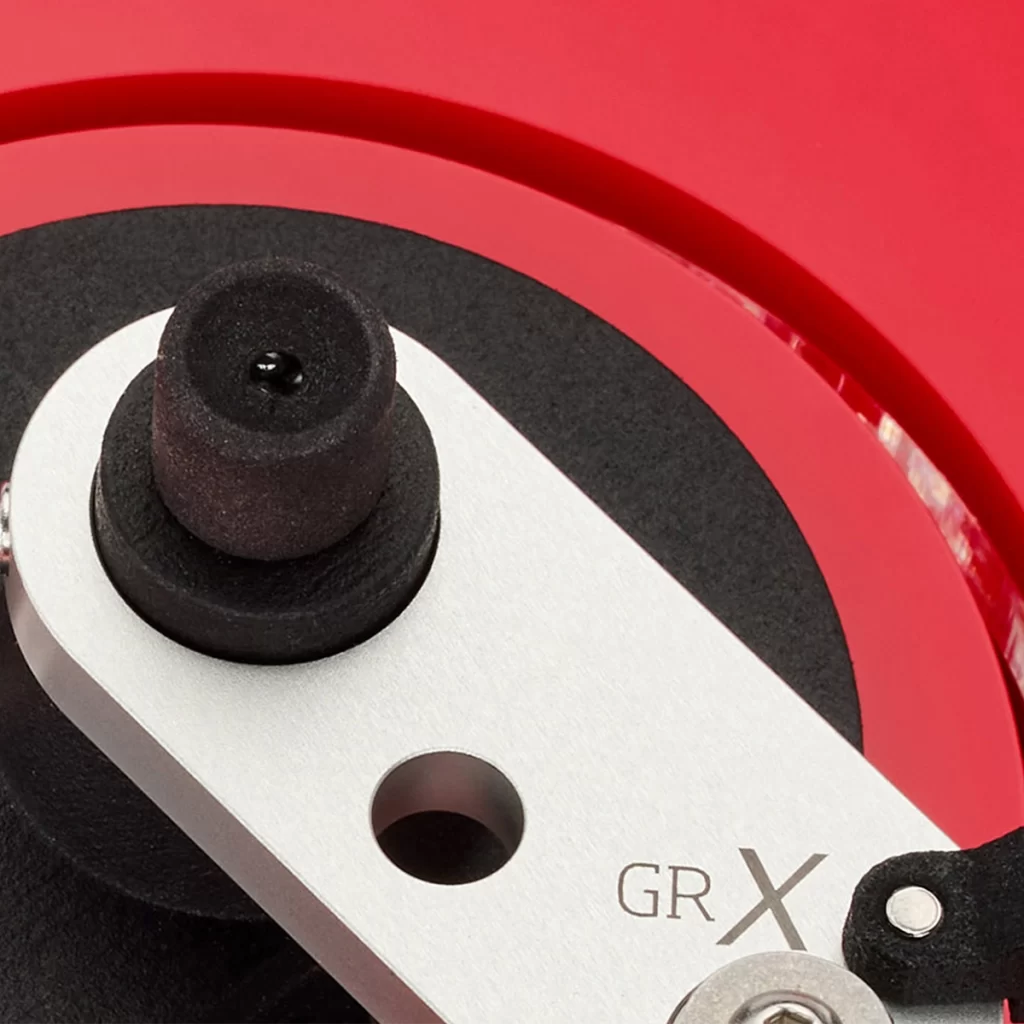

GR X Tonearm Counterweight Assembly
- Non-magnetic Stainless Steel Main Counterweight With Captive, Easy Adjustable & Friction Locked Fine Azimuth Setting Screw / End Weights
- Special Locking Aluminium Alloy Counterweight Fixing Screw – Factory Set With Cartridge Fitted DG X Packages
- Easy Adjustable Anti-skate With Progressive Bias Force Across The Record Factory Set With Cartridge Fitted DG X Packages
- Tonearm Easy VTA Adjustable Non-magnetic Brearing Point Screw Factory Set With Cartridge Fitted DG X Packages
- Front Small Counterweight;
Fine Tracking Weight Adjustment + Arm/Cartridge Resonance Setting Factory Set With Cartridge Fitted DG X Packages

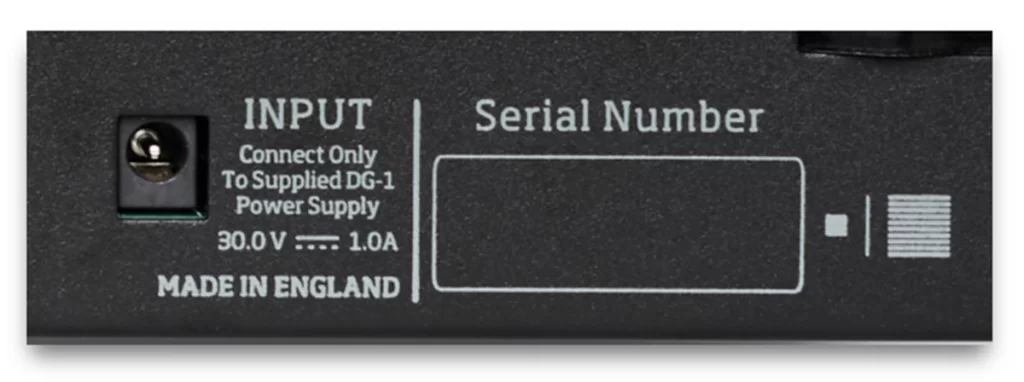

DG X Power Input
Supplied With The New Bespoke Vertere DC-2
Dedicated 30V DC Descktop Power Supply
Detachable Mains Cable – Upgradable; To Redline AC Mains Cable

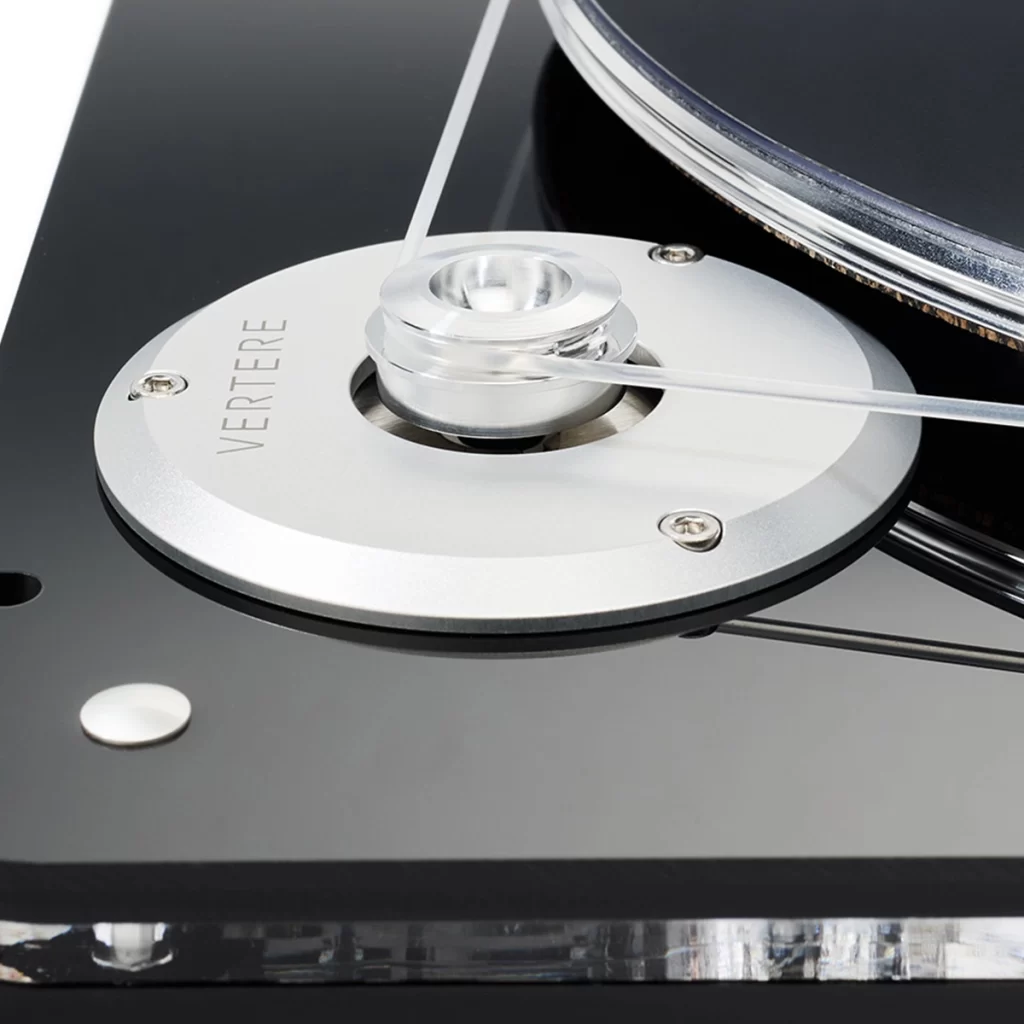

DG X Drive System
AC Synchronous Low Voltage Motor Fitted With Bespoke Precision Machined Acetal Motor Spindle Thrust Bearing
Precision Machined Aluminum Alloy Pulley
Precision Machined Aluminum Alloy Platter + Resonance Control Aluminum Disc
PETG Bonded Mat Interface Aluminum Resonance Control Disc Protective Cork/Neoprene/Nitrile Disc
Vertere DG Silicone Precision Drive Belt
Vertere Advanced Microprocessor Controlled Motor Drive Fully Programmable with Motor Noise Reduction Bridged Balanced Motor Output Amplifiers
33.3 and 45 rpm – Electronically Selectable

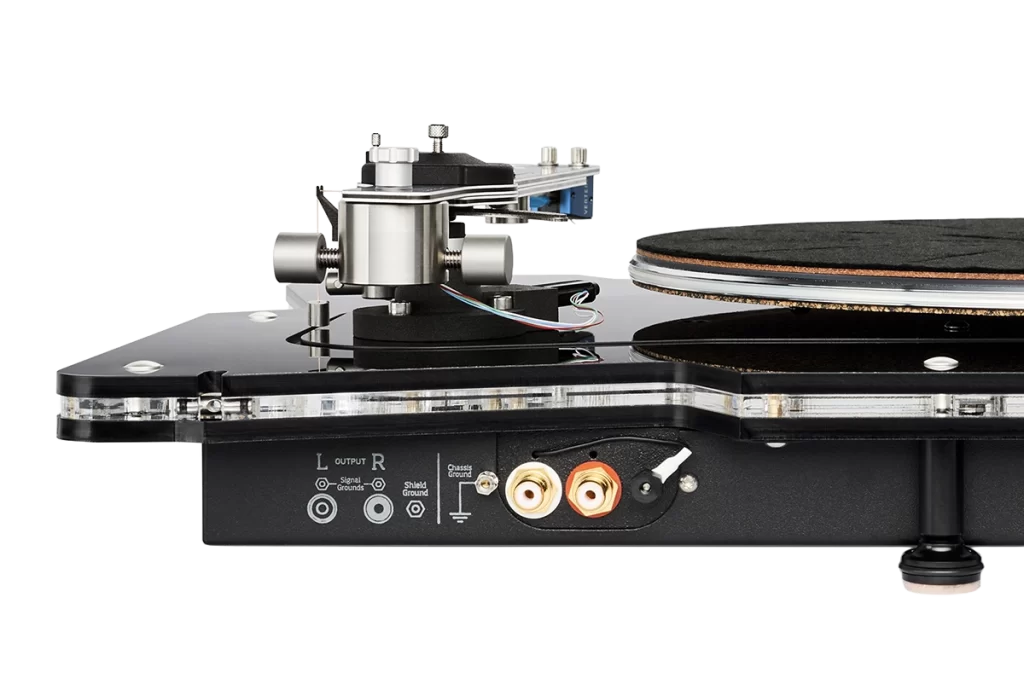

DG X Audio Output
Vertere Gold Plated RCA OutPut Sockets With Selectable Shielding;
Signal, Chassis & Floating

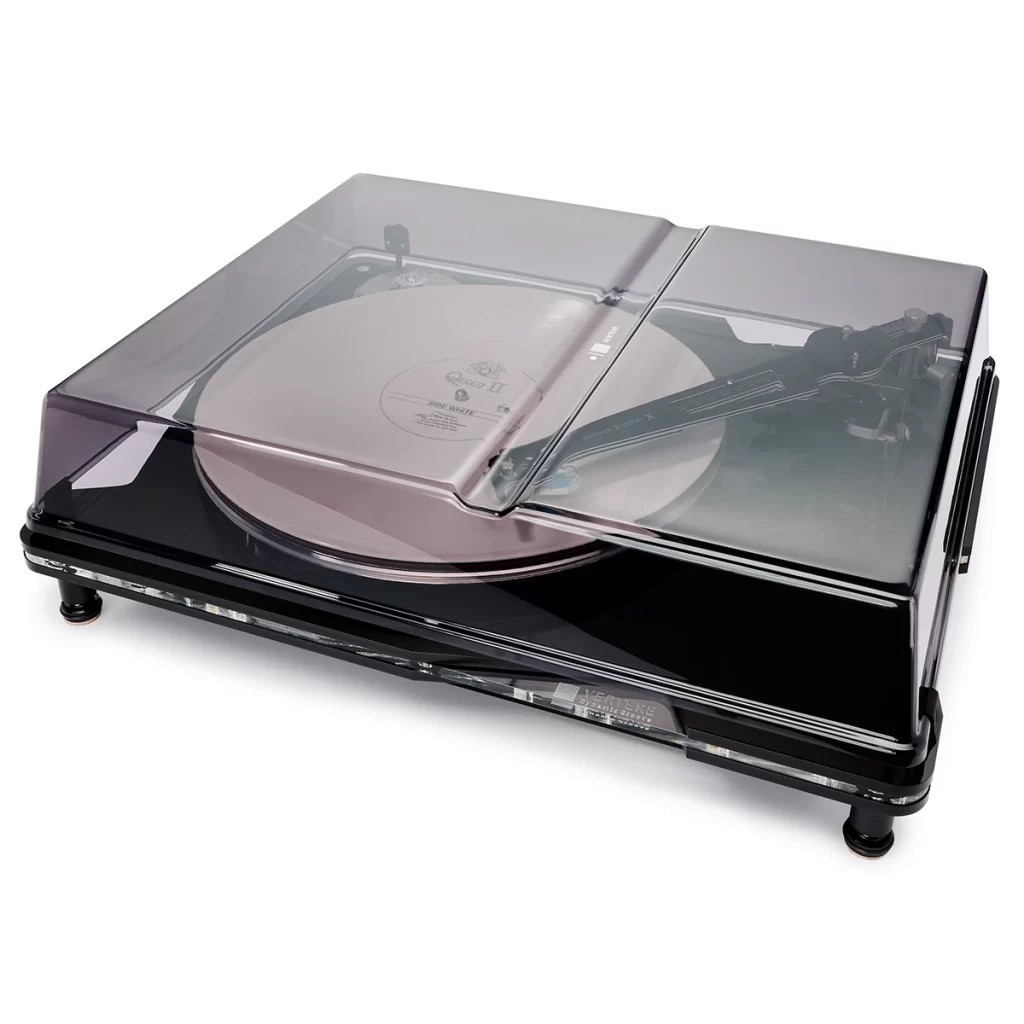

DG X Dust Cover
Bespoke Formed Tinted Non-resonant Acrylic Integral Hinges & Removable
Minimal Impact On Sound Quality Performance
technical specifications
DG X TURNTABLE
Type
Belt drive
Motor
AC Synchronous
Acetal Spindle Thrust Bearing
Motor Mount
Axially De-coupled
Pulley
Super Precision Aluminum Alloy
Drive Belt
Bespoke Silicone Rubber
Platter
Precision Machined Aluminium Alloy PETG Bonded Mat Interface
Aluminium Resonance Control Disc Protective Cork/Neoprene/Nitrile Disc
Bearing Spindle
Non Magnetic Stainless Steel
Super Precision Machined and Mirror Polished
Roundness / Concentricity
< 5 Microns
Bearing Housing
Brass Alloy
Super Precision Machined
Bore Tolerance < 5 Microns
Super Precision Tungsten Carbide Thrust Ball
Plinth Structure
3 Layer Cast Acrylic
Non-resonant Sandwiched
Clear Middle Plinth, Internally Illuminated
Isolation System
4 Position Compression
Support Structure
Black Coated Zintec Steel Chassis
+ Aluminum Resonance Control Pad
1 Rear Acetal & 2 Front Aluminium Foot Pillars Three Adjustable Feet with Resistive Felt
Motor Drive
Vertere Advanced Microprocessor Controlled Fully Programmable with Motor Noise Reduction Bridged Balanced Motor Output Amplifiers
Speeds
33.3 and 45 rpm (+/- 0.2%) Electronically Selectable
Dust Cover
Bespoke Formed Tinted Non-resonant Acrylic
Dimensions (W x D x H)
18″ x 15″ x 5″ (including dust cover)
Power Supply
VERTERE DC-2 Bespoke Desktop IEC AC Mains Input
Mains Cable – UK, EU, US, AUS
Finishes
Gloss Black, White & Red
Weights
17 lbs – Net
GROOVE RUNNER X TONEARM
Type
Tri Point Ariculated (TPA SG-1 Type)
Effective Length
240mm
Overhang
17.5mm
Offset Angle
22.9°
Tonearm Beam
Two 5-layer Flat Beams
Top & Lower Beams
Rigidly Bonded
Bearing Structure
3 Captive silicon Nitride Balls Precision Machined Non-magnetic Stainless Bearing Point
VTA Adjustable
Anti-skate System
Adjustable Stainless Weight/Thread
Progressive Across The Record
Counterweight
Stainless Steel & Special Locking Screw Fine Azimuth Adjustable Screw & End Weights
Front Beam Small Weight
Stainless Steel Block
Fine Tracking Weight and Arm/Cartridge Resonance Tuning
Internal Wiring
Vertere Pulse Wiring
& Vertere Gold Plated Cartridge Tags
Detachable from Bearing Pillar
Output
Vertere Gold Plated RCA Sockets
Multi Shield Grounding
Chassis, Signal & Floating Ground
Weight
340g
