SG-PTA HB
Super Groove Precision Tonearm HB
$4,995.00USD
Benefitting enormously from the work done in developing the Reference Tonearm, the Vertere Super Groove PTA HB offers incomparable performance in almost any class.
key improvements
- New precision Tri-pivot bearing with ultra-low stiction
- New Headshell – Aluminium for SG-PTA and Titanium for SG-PTA HB
- Heavier decoupled counterweight with adjustable outriders for easy azimuth adjustment
- Heavier sliding effective mass /arm cartridge resonance/tracking weight fine-tuning adjuster
- Custom Vertere or Vertere HB internal wiring
- Machined from solid PTFE Arm DIN connector with precision machined Vertere connectors
- All connections are custom manufactured and triple gold-plated.
features
SG-TPA HB Tonearm Bearing
The new Tri-Pivot Articulated (TPA) bearing is comprised of three precision silicon nitride balls captive in a precision machined Acetal ball retaining ring supporting the super precision machined stainless pivot. The pivot point centred between the silicon nitride balls provides flawless support and articulation.
TPA eliminates bearing point ‘skating’ and allows the stylus to track the most delicate pieces of information that are typically lost with uni-pivot designs. This ensures accurate play back due to the strict adherence of the stylus to the record groove.

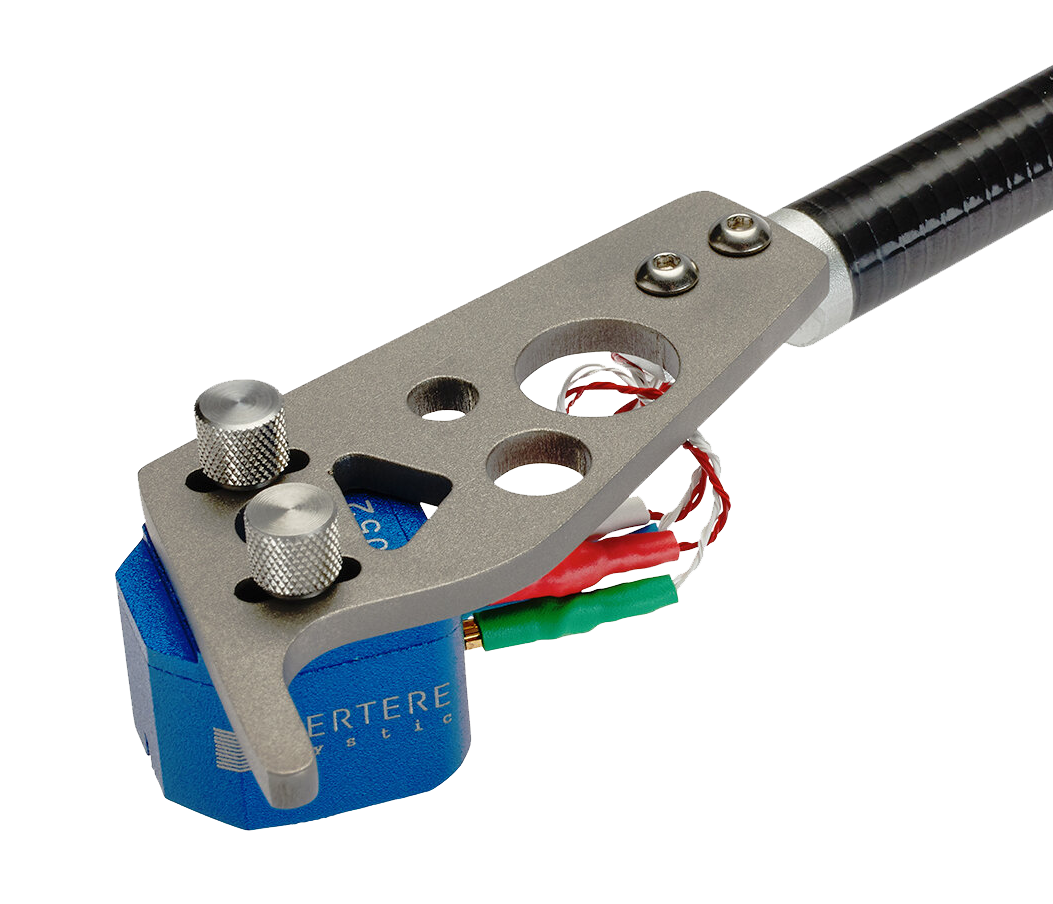

SG-PTA HB Tonearm Tube & Head-shell
Roll wrapped carbon fibre is used in the construction of the arm tube. This provides higher strength and more homogenous fibre structure than a Pultruded or moulded equivalent.
The Super Groove Precision Tonearm HB head-shell is made from Titanium and connected to the arm tube via structurally bonded alloy end insert. Naturally non-resonant and optimum rigidity of this configuration provides the most stable platform for the cartridge.
Aluminum Bearing Yoke and Brass Pillar
The bearing pivot is structurally bonded to the precision machined aluminium alloy yoke. The assembly provides the support required for the arm tube, the main counterweight and the anti-skate mechanism.
The pivot point and the counterweight centre of gravity are vertically positioned to be as low as possible. This in turn retains the tonearm in its most stable position by the chrome plated brass main tonearm pillar.
Bearing Transit Screw & Counter Weight Locator
SG PTA HB tonearm transit screw will prevent any accidental damage to the precision Tri-pivot bearing during shipping. And the counterweight locator will ensure accurate repositioning of the counterweight and eliminate the need to setup the Tracking Weight & Azimuth again.
Arm/Cartridge Resonance Frequency & Fine Tracking Weight Adjustment
An adjustable and de-coupled stainless ring allowed to move along the arm tube provides fine tracking weight adjustment.
The relative position of this ring and of the main counterweight can also be used to alter the arm/cartridge resonance frequency and optimize play back performance of the cartridge.

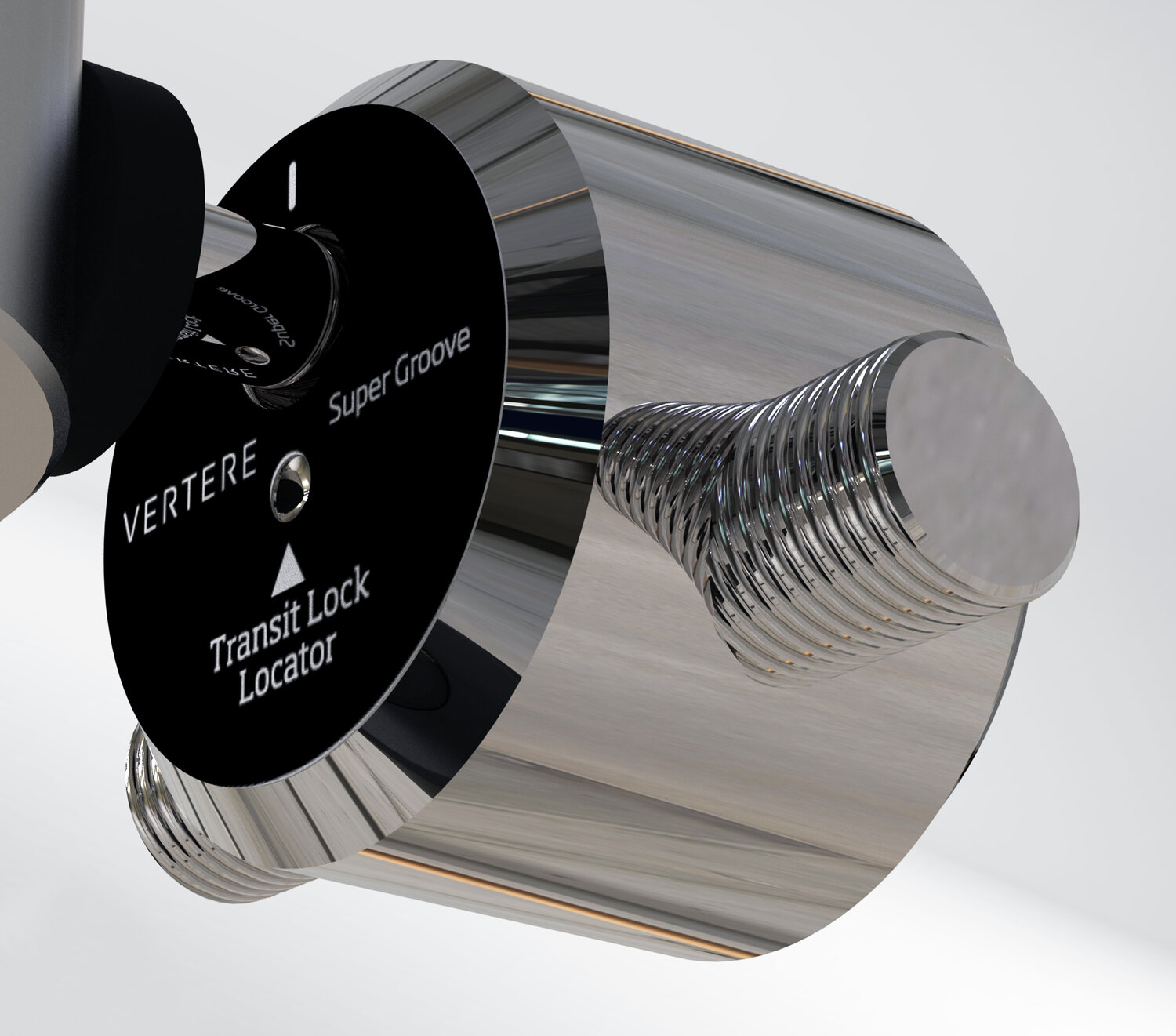

SG-PTA HB Tonearm Main Counterweight
Attention to detail is clearly seen in the mirror chrome plated brass counterweight and polished stainless steel peg.
Two pairs of silicone de-coupling rings are utilized to provide the necessary grip for location and the required isolation of the counterweight. Side-to-side moving and lockable Fine Adjustment Azimuth Screw offers easy and accurate setting of the cartridge azimuth to ensure optimum musical performance.
SG-PTA HB Tonearm Pillar Holder and Clamp
Precision machined from Acetal the SG PTA HB Tonearm Pillar Holder and Clamp utilizes a Tri-point fixing method to provide the tonearm/cartridge the required interface rigidly coupled to the record player.
Internal Wiring & Contact Connectors
Both the cartridge tags and the 5-pin connector pins are designed, machined and gold plated to Vertere exact specifications for the SG PTA tonearm. The 5-pin connector main body is also machined form solid PTFE for its superior di-electric characteristics. SG-PTA HB tonearm is wired with hand-built Pulse HB.
technical specifications
Type
Tri Point Articulated
Effective Length
240mm
Overhang
17.5mm
Offset Angle
22.9°
Head-Shell
Titanium
Arm Tube
Wrapped Carbon Fibre
Bearing Yoke Structure
Aluminium Body
Bearing Type
Captive silicon Nitride Ball (x3) Precision
Counter Weight
Mirror Chromed Brass
Stainless Steel T/W Adj. Sleeve
Internal Wiring
Vertere Pulse HB Hand-built
Connector
Proprietary Cartridge Tags & 5-Pin
x3 Thickness Gold Plated Contacts
Tonearm Cable
Optional: PULSE HB, veRum or Redline
Weight
428g
