SG-1
super Groove
Bringing music to life in the home, Vertere’s Record Player SG-1 Super Groove can take you close to perfection in turntable performance.
features

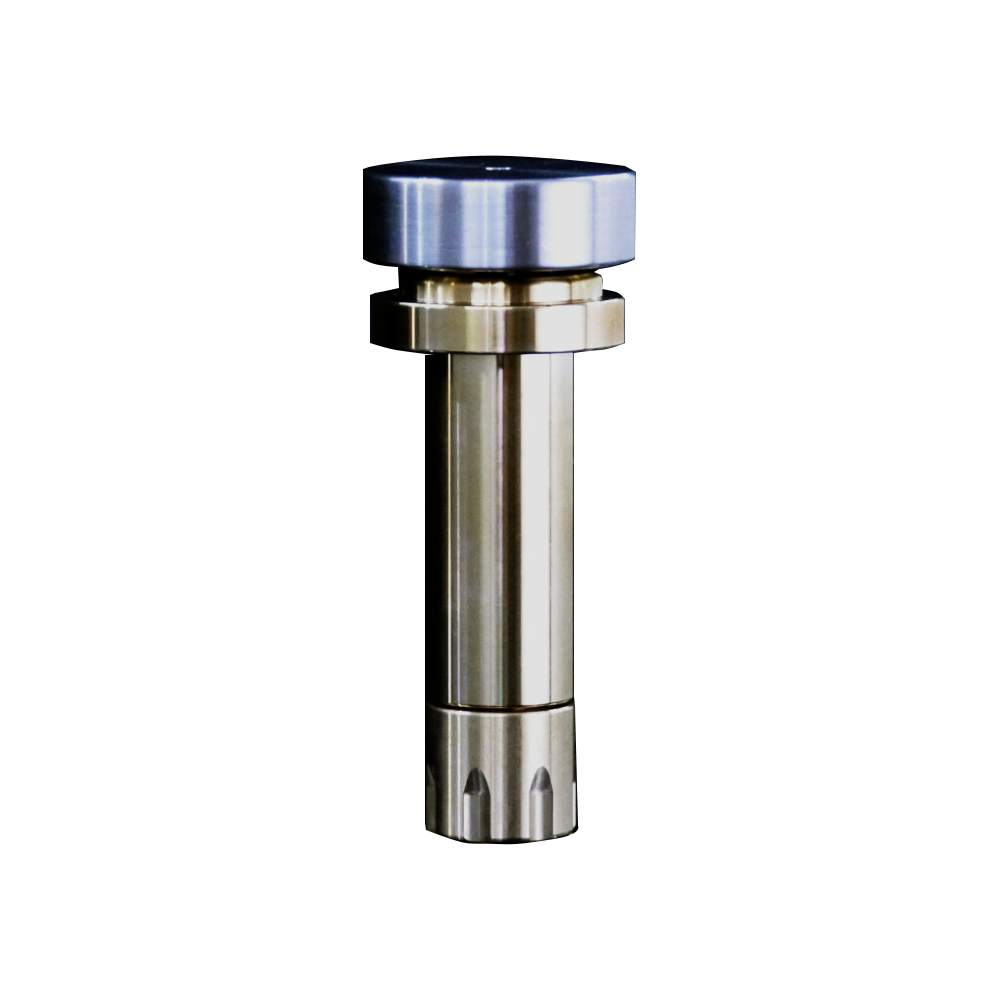

Main bearing assembly

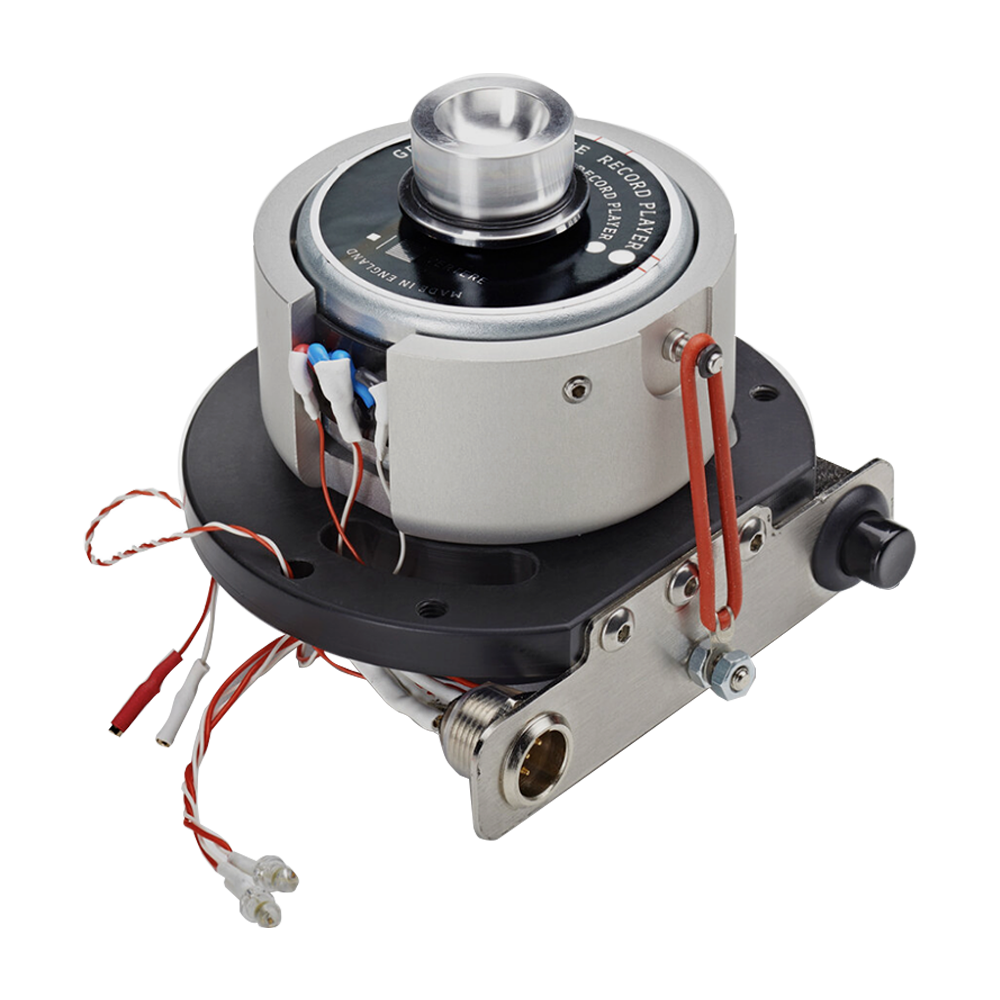

Turntable motor

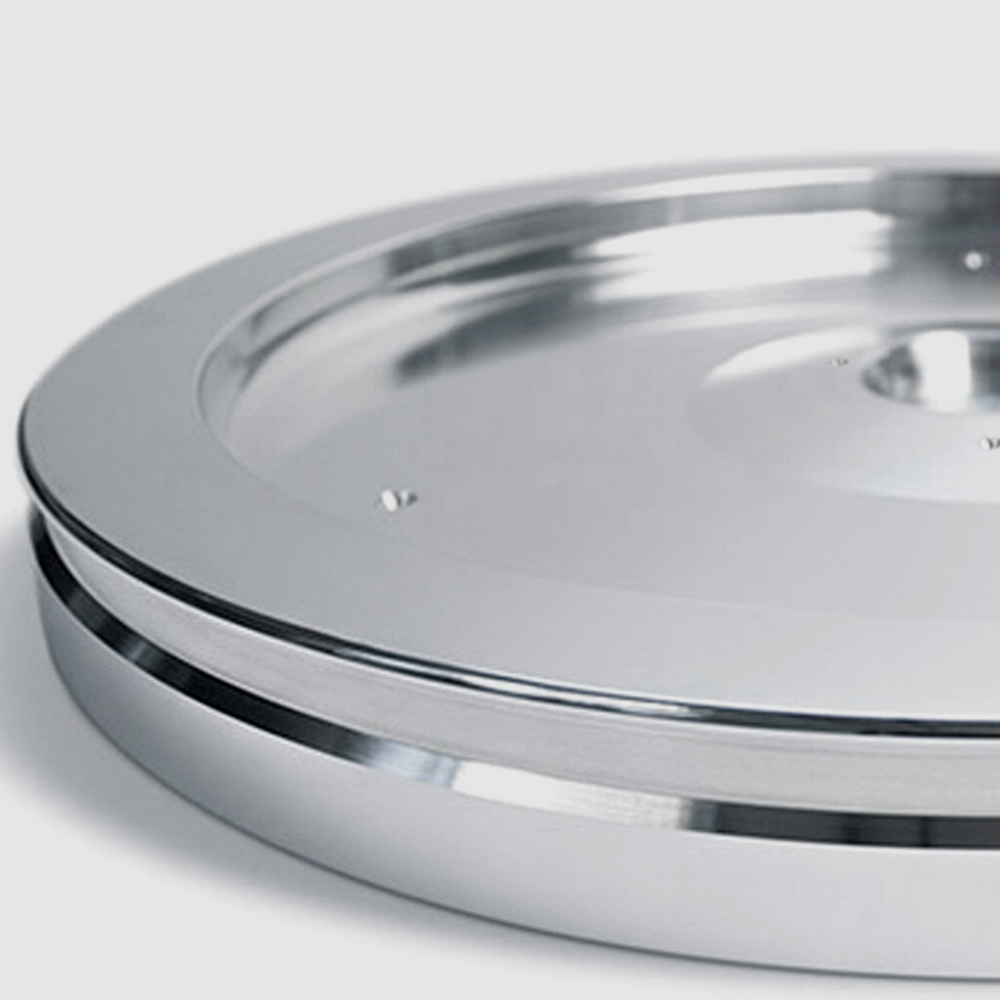

Main platter
RG-1 platter assembly is a unique two piece super precision machined aluminium alloy design that provides friction-only damping of the platter assembly.
The main platter has a critically designed surface profile on its top side that perfectly matches the underside of the reference platter insert. The two parts fit so precisely that the assembly creates a linearly damped, non‐resonant structure.
Tempo Motor Drive

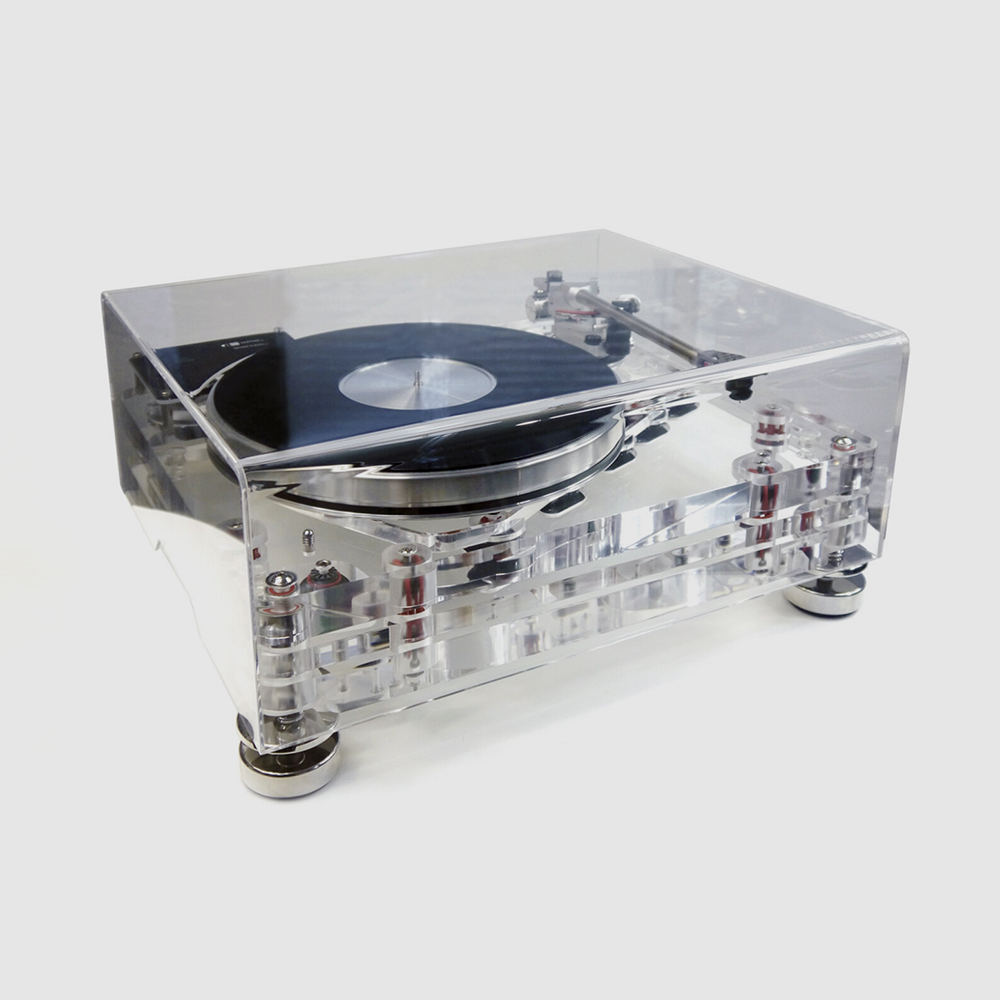

SG-1 turntable dust cover
There is an optional dust cover that fully encloses the RG-1 while aesthetically complimenting the elegant lines and design of the turntable.
The main section covering the top, front and the back is a one piece 6mm clear cast acrylic providing support and rigidity with cut-outs for motor drive and tonearm cables. The sides are made from 3mm clear cast acrylic also including hand-grip cut-outs for easy placement and removal of the cover.
A Vertere emblem, laser engraved on the top adds the finishing touch to this elegant and practical record player dust cover.
Special Metallic Finishes
Vertere Special Metallic Black, Pearlescent White & Champagne finishes are now available for the SG-1 record player at a premium.
Following in the footsteps of the RG-1, these lustrous, vibrant colours provide perfect alternatives to the original Clear finish of the SG-1.
Clear cast acrylic was carefully selected for SG-1’s plinth material as it provides the most stable and acoustically suitable platform for all its critical components. The specially formulated paint and method of printing of these glistening finishes enhance the aesthetics without any compromise in performance of the SG-1 record player.
The Vertere emblem printed on the top plinth adds the final finishing touch.
Manuals & Support
technical specifications
Type
Belt drive
Motor
24 Pole Synchronous
6 Point Body Contact Support
Spindle Support Acetal Ball Bearing
Motor Mount
Acetal Platform – Articulated
2 Ball Race Bearings and Silicone Motor Spring
Pulley
Super Precision Aluminium Alloy
Drive Belt
Precision Ground Polymer
Platter SG-1
Super Precision Aluminium Alloy
Single Piece
3mm Bonded Acrylic Record Interface
Bearing Spindle RG-1
Precision Hardened Stainless Steel
Roundness / Concentricity and Finish < 2 Micron
Bearing Housing SG-1
High Copper Content Phosphor Bronze
Clearance < 6.5 Microns
Plinth Structure
Clear Cast Acrylic with optional finishes
Special Metallic Black or
Metallic Pearlescent White and Metallic Champagne30mm Thick Top and Bottom Plinths
20mm Thick Sub-plinth and 15mm Mid-plinth

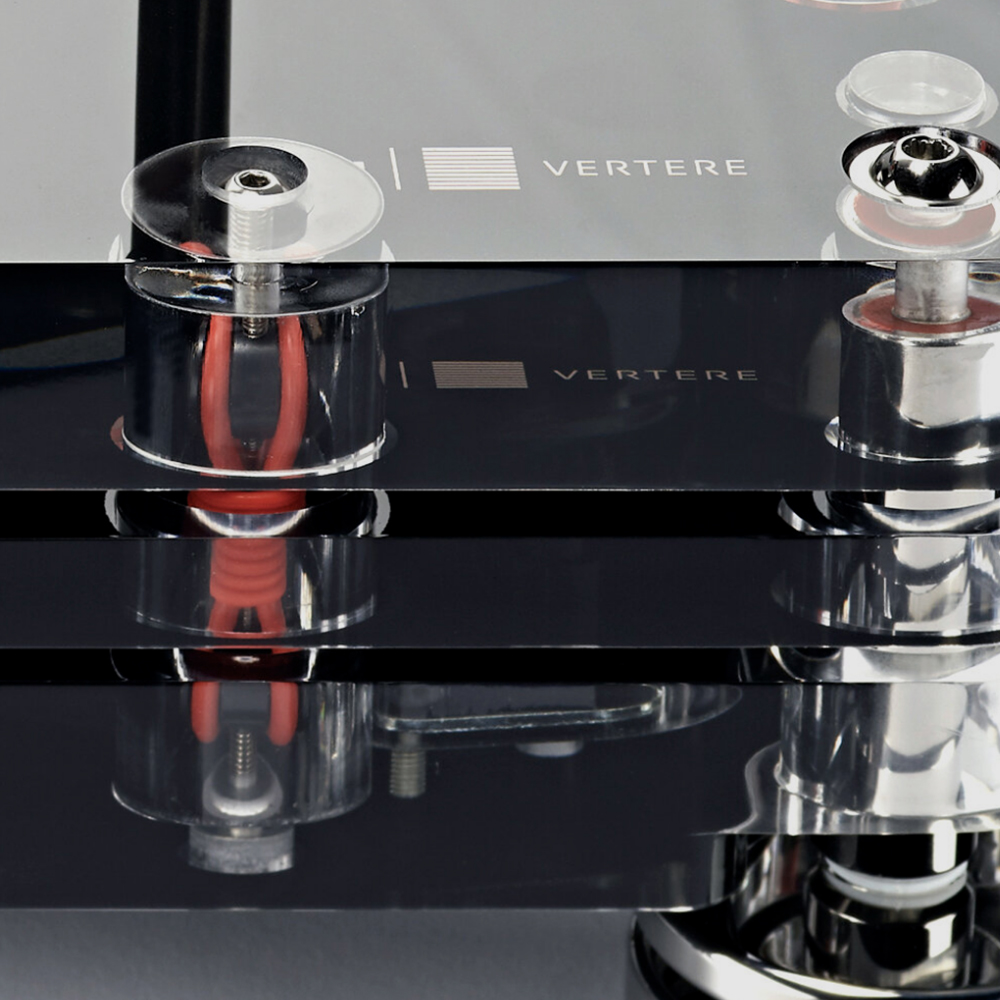

Isolation System
3 Stage Compliant and 2 Stage Rigid
12 Decoupler Sets and 12 Tuned Silicone Ring / Bobbins
3 Stage Compliant and 2 Stage Rigid
Motor Drive P/S
Precision Crystal Referenced
Speeds
33.3 and 45 rpm (<0.2%)
Wow and Flutter
<0.1%
Rumble
<-85dB
