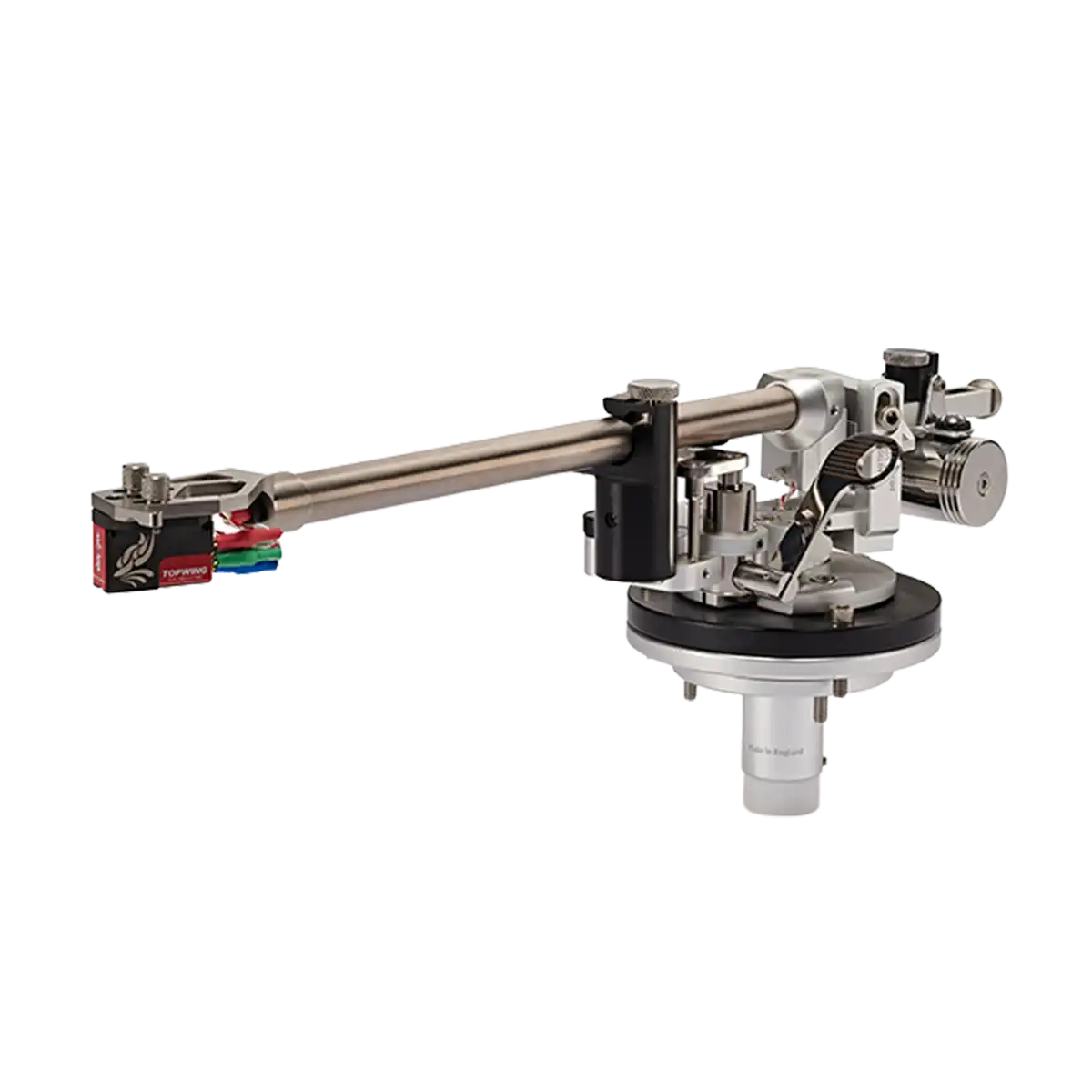

Reference Tonearm – New Gen
$64,995.00USD
The Vertere Reference Tonearm has been created to push the boundaries of analog reproduction by systematically addressing every aspect of tonearm performance.
Description
Why Reference Tonearm?
-
- The unique Vertical & Horizontal pivoting motion is provided by non-rotating polymer-metal laminate films. The result is the first truly ‘noiseless’ and stiction-free tonearm bearing.
- The main counterweight is articulated in the vertical and horizontal planes through precision ball race bearings. To ensure proper tracking even on warped records.
- For ideal rigidity, the arm tube & head shell are machined from solid titanium then fuse welded to form a homogenous component.
- For ideal rigidity, the arm tube & head shell are machined from solid titanium then fuse welded to form a homogenous component.
- Horizontal & Vertical bearings are offset by 23mm to optimise tracking accuracy and information retrieval.
- Anti-skate force is applied using microns thick non-resonant, frictionless silicone polymer strip.
- Unique Transit Clamping System which allows secure transportation keeping the arm/cartridge safe and perfectly setup. This ensures exact performance after shipment and reinstallation. The use of the clamp also assists with mounting the cartridge safely and precisely.
- Custom built lift/lower mechanism, precision engineered to ensure smooth, firm & accurate cueing.
Technical Data
Technical Data
| Specification | Details |
|---|---|
| Type | Pivoted |
| Effective Length | 240mm Horizontal 263mm Vertical |
| Overhang | 17.5mm |
| Offset Angle | 22.9° |
| Head-Shell | Titanium |
| Arm Tube | Titanium |
| Bearing Yoke Structure | Aluminium Body |
| Bearing Type | Non-Rotating Microns-Thick Kevlar Threads |
| Counter Weight | Stainless Steel / Tungsten Carbide Articulated x3 Ball Races |
| Internal Wiring | Special Hand-Built Pulse Signal & LED Power Wiring x3 Thickness Gold-Plated Contacts |
| Connector | Proprietary Cartridge & Cable Connectors x3 Thickness Gold-Plated Contacts Vertere 7-Way Tonearm Connector |
| Tonearm Cable | Special Pulse-HB Hand-Built x3 Thickness Gold-Plated Contacts Vertere HB Reference 23.95ct Gold / 5 Micron+ |
| Queuing Light Power Supply | Battery Powered |
| Standard Counterweight (x1) | 142g |
| Standard C/W Disc (x6) | Each 7.6g |
| Special Counterweight (x1) | 83g |
| Tungsten Carbide C/W Insert (x1) | 114g |
| Special C/W Disc (x4) | Each 7.6g |
| Overall Weight (with Std C/W & x4 Discs) | Approx. 590g |
