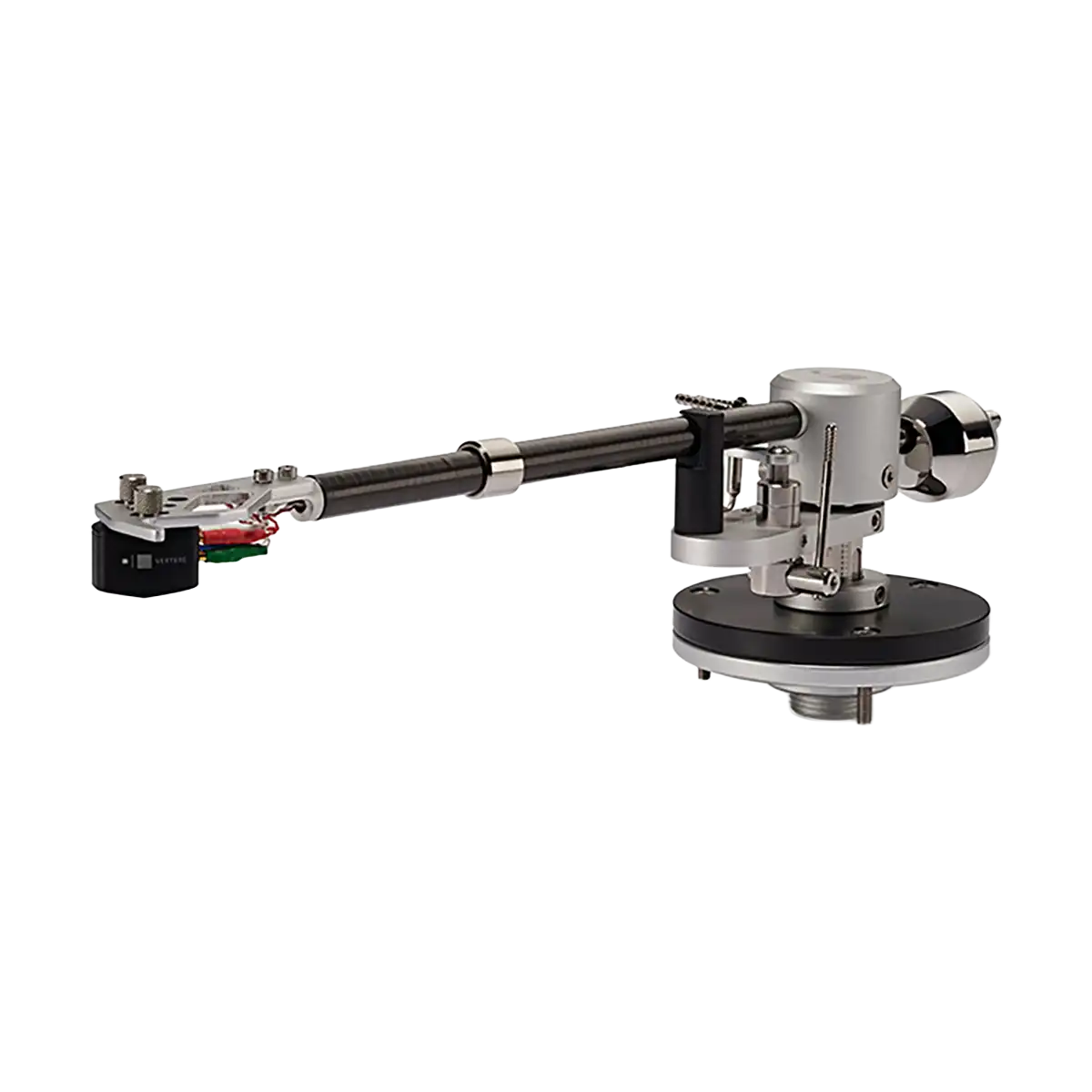

SG-1 Tonearm
$2,495.00USD
To eliminate the ‘loss’ of information due to unwanted bearing chatter, Vertere has designed a Tri Point Articulated bearing or TPA. Three silicon nitride precision balls and a precision machined pivot point provide the support and the articulation for the arm. Although the tonearm may appear to behave as a uni-pivot, it is however, without any of the bearing ‘chatter’, preserving as much of the signal information as possible. The result is a life like dynamic response with unexpected clarity, musicality detail – truly unparalleled.
Description
Benefitting enormously from the work done in developing the Reference Tonearm, the Vertere SG-1 MkII Tonearm provides unsurpassed performance in its class.
To achieve breath-taking musical performance, the Vertere SG-1 Tonearm utilises a combination of quality materials including roll-wrapped carbon-fibre, stainless steel, aluminium alloys and silicon nitride. Its unique bearing design and versatile anti-skate adjustment make it an ideal partner for any high-quality turntable.
Features
- SG-1 Tri-Point Articulated bearing eliminates loss of information.
- Non-resonant, high-rigidity roll-wrapped carbon fibre arm tube.
- Bias-curve adjustable anti-skate mechanism.
- Decoupled stainless-steel main counterweight.
- Adjustment ring for fine-tuning of tracking weight and arm/cartridge resonance control.
Specifications
Specifications
| Type | Tri Point Articulated |
| Effective Length | 240mm |
| Overhang | 17.5mm |
| Offset Angle | 22.9″ |
| Head-Shell | Aluminum Alloy |
| Arm Tube | Wrapped Carbon Fibre |
| Bearing Structure | Captive Silicone Nitride Ball (x3) – Precision Stainless Point |
| Counter Weight | Stainless Steel – Stainless Steel T/W Adj. Sleeve |
| Internal Wiring | Optional – Pulse Hand-built or Standard |
| Connector | Proprietary Cartridge Tags & 5-Pin – x3 Thickness Gold Plated Contacts |
| Tonearm Cable | Optional – Pulse Han-Built, Pulse-R, Pulse-B, Pulse-C & D-Fi |
| Overall Weight | 397g |
